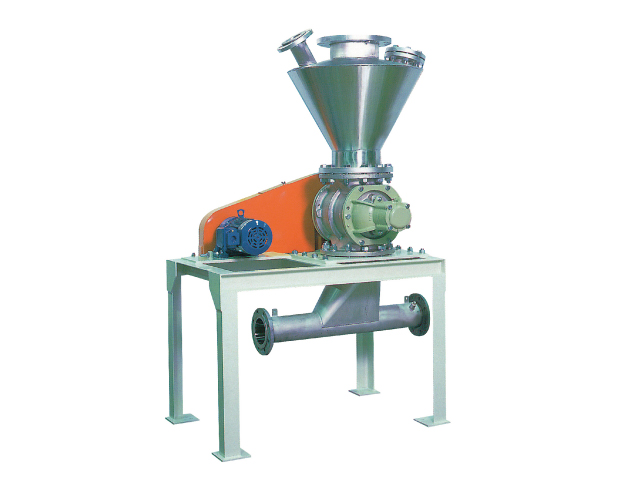

Rotary Feeder (Unit)

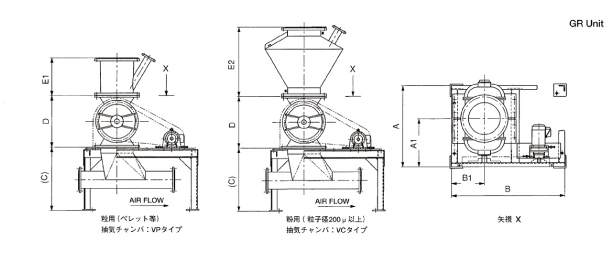

Standard type unit /GR unit
It is the product, which realizes the improvement in stable supplying performance and the miniaturization, by the latest technology.This type is "Standard seal" type of rotary feeder whose maximum seal pressure is under 0.1MPa.
Features
"Standard seal" type of rotary feeder for maximum seal pressure 0.1MPa.
Application
When upper case having low differential pressure of the rotary feeder top and bottom and rotary feeder pressure is high, you can use it as the one piece of article unit which Vent chamber and Feed Nozzle are not attached to.

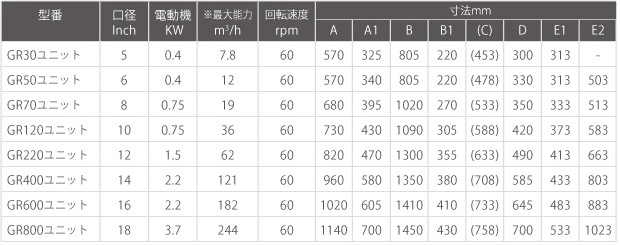

＜スペック＞
