Rotary Feeder (Unit)
|
Standard type unit /GR unit It is the product, which realizes the improvement in stable supplying performance and the miniaturization, by the latest technology. |
|

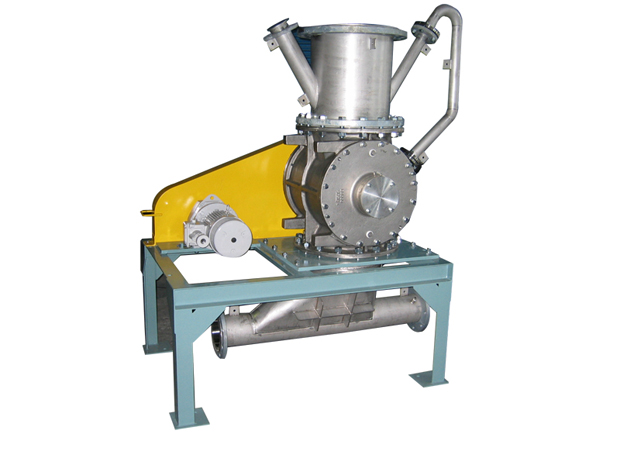

Middle pressure seal type unit (high seal)/ER unit This type is usable at the middle range of differential pressure (under 0.2MPa). In case of pellet, "Pellet Bites" is reduced by "W" shape of the casing. Casing and Rotor for ER-unit share with that of GR-unit. And ER-unit is usable at the middle range of differential pressure by devising Side Cover. |
|
High pressure seal type unit(super high seal) /HR unit This type is a non-contact type of Rotary Feeder which has the performance as high pressure seal. Vent part is prepared on casing. |
|
"Pellets Bites" prevention type /NGR “Pellets Bites” is "0 (zero)" practically. The quality of pellets is maintainable because pellets are not bitten (not cut) (not smashed). |
|
Continuous Flo-charger The Continuous Flo-Charger is modular type, and part of a pneumatic conveyor system which continuously charges a constant quantity of solid fuel, such as coal or oil coke, into the pressurized furnace of a boiler or other combustion equipment. |
|
For the pulverized materials of waste plastic This rotary feeder is for the pulverized materials of resin films, PET bottles, and Plastic products. This type can make the light products like them supply into the conveying pipe. |
|

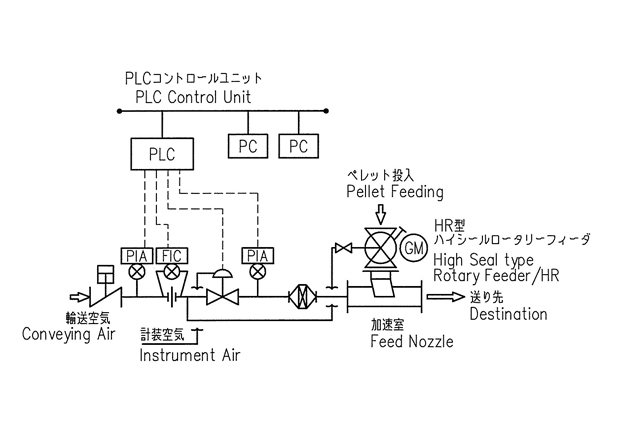

Continuous Pneumatic Conveying System in high-pressure and high-concentration /FLOW REX II We realize more economical and stabler conveying system. In this system, we control conveying gas volume constantly. And, this system responds to the change of destination (distance), conveying-capacity and the kind of conveyed material ,automatically. |
|
Receiving and Conveying System For bulk liner/ Piatto feeder/ LFP (LFR) This is the feeder by the newest concept for bulk container receiving. You can receive bulk container without constructing underground pit. |
